SKU: 01022185

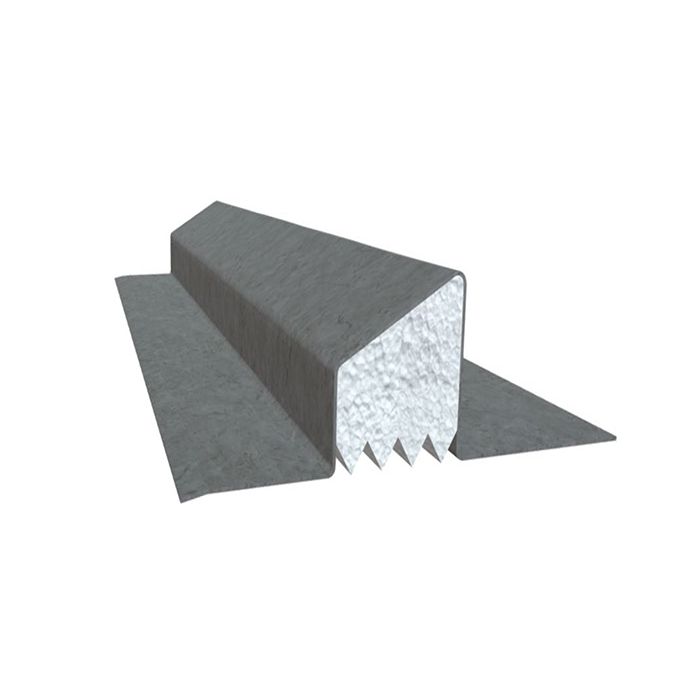

Birtley Supergalv Lintel CB90 3600mm
The CB90 Standard Duty Cavity Wall Lintel is designed for cavity walls with a cavity width of 90-105mm, typically used for supporting openings in external walls.
£1,364.40
Ex VAT:
£1,137.00
£818.64
Inc VAT
£682.20
Ex VAT
Ex VAT:
Secure Online Payments
Description
The CB90 Standard Duty Cavity Wall Lintel is designed for cavity walls with a cavity width of 90-105mm, typically used for supporting openings in external walls. It is suited for load-bearing applications but not recommended for point loads or concrete floors.
Features & Benefits
Post-fabrication galvanising provides up to 50% more zinc protection compared to other coatings, offering superior life expectancy.
The standard cavity lintel design achieves up to 55% improvement in thermal bridging compared to SAP default values, contributing to improved thermal performance.
Expanded polystyrene reduces thermal bridging and enhances the energy efficiency of the building.
Specifications
Height: 197mm
Length: 3600mm
Type: Cavity Wall Lintel
UDL: 26kN/m
Cavity: 90-105mm
Outer Leaf: 100mm
Inner Leaf: 100mm
Weight: 14.4kg/m
