Quote
SKU: 01048175

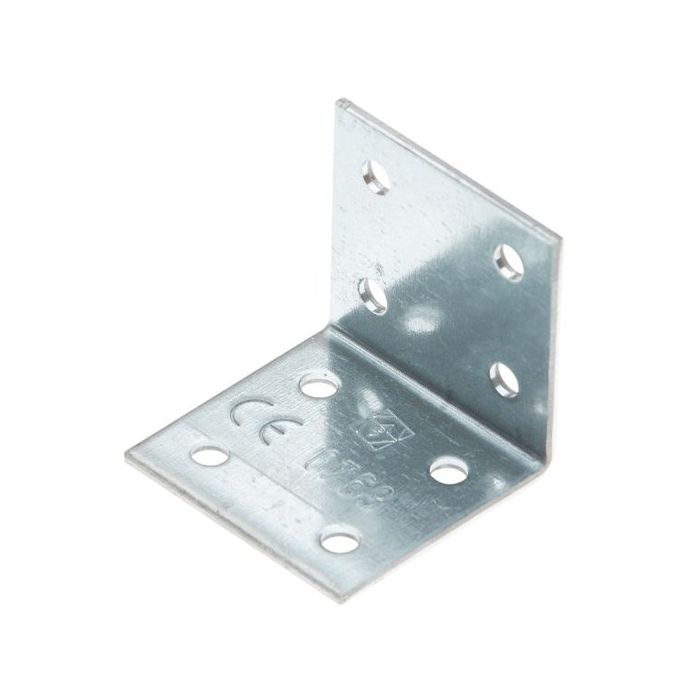

Expamet Angle Bracket 40x40x40mm

Expamet BAT Angle Bracket (40 x 40 x 40mm) is made from galvanised mild steel for timber connections and must be used in pairs to prevent eccentric loading.
£1.50 Inc VAT
£1.25 Ex VAT
-
+
Secure Online Payments
Expamet BAT Angle Bracket (40 x 40 x 40mm) is made from galvanised mild steel for timber connections and must be used in pairs to prevent eccentric loading. This versatile, zinc coated, L shaped bracket is A1 Fire Rated and should be used with 4.0 x 40 annular ring shank nails to achieve the stated load of F1 Uplift (ULS) 1.24kN. It will provide support and reinforcement to joints and corners, thus adding stability and strength to the overall structure. Features & Benefits Support and reinforcement to joints and corners. Used with 4.0 x 40 annular ring shank nails. Stability and strength to the overall structure. Specifications Length: 40mm Width: 40mm Depth: 40mm Finish: 275g/m² galvanised coating Declared Loadbearing Capacity Per Pair: F1 Uplift (ULS) 1.24kN Material: Galvanised mild steel S250GD+Z275 to EN10346:2015 Fixing Hole Dimensions: 5mm (8) Fire Rating: Euroclass A1 ETAG015 (ETA09/0312)
