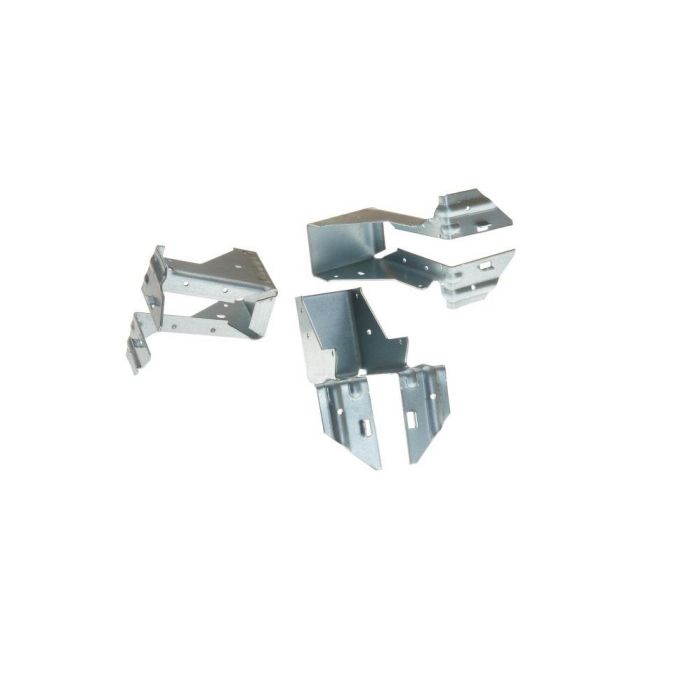

Expamet Sph STD Joist Hanger 150 x 100mm

This joist hanger is designed for integrating timber joists with masonry walls during first fix construction. The build-in style is set between brick or block courses, supporting horizontal members such as floor or ceiling joists. Commonly used on site for establishing reliable timber connections as masonry is built up, it helps maintain alignment and stability of structural timbers within domestic or commercial buildings. The hanger is suited for typical 150 x 100mm joists where timber needs to be anchored into a masonry wall. Features & Benefits Build-in design fits between masonry courses for a secure, fixed connection while bricklaying. Suitable for 150 x 100mm joists, allowing use with standard structural timber sizes. Pre-formed shape provides consistent bearing and reduces the need for on-site fabrication. Typically used for floor, ceiling, or decking supports where timber needs to be integrated with a masonry wall. Specifications Length: 150mm Width: 100mm Material: Galvanised mild steel DX51D+Z600 to EN10346:2015 Material Gauge: 2mm Weight: 0.545kg Declared Loadbearing Capacity: 5kN SWL (SLS) Fire Rating: Euroclass A1 Finish: 600g/m² zinc coating
