SKU: 01048755

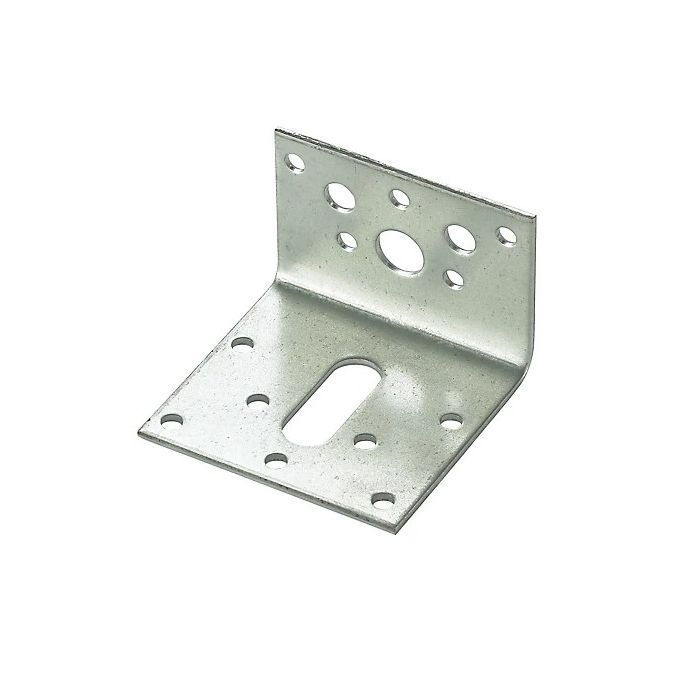

Expamet Angle Bracket Light Duty 60 x 40 x 60mm

This light duty Expamet Angle bracket is thin L shape bracket that is 40mm tall and 60mm long and designed for timber connections.
£1.58 Inc VAT
£1.32 Ex VAT

-
+

Secure Online Payments
This light duty Expamet Angle bracket is thin L shape bracket that is 40mm tall and 60mm long and designed for timber connections. Use 3.75x30 Square Twisted Nails to achieve stated loads, otherwise as suitable for substrate and hole size. Brackets must be used in pairs to prevent eccentric loading. Features & Benefits Load tested. Various fixing holes sizes for convenience. Fixing type use 3.75x30 square twisted nails to achieve stated loads, otherwise as suitable for substrate and hole size. Brackets must be used in pairs to prevent eccentric loading. Specifications Finish: 275g/m² galvanised coating Fixing Hole Dimensions: 4.5mm (12) 7mm (2) 11mm (1) 11x30 Slot (1) Declared Loadbearing Capacity Per Pair: F1 Uplift (ULS) 4.17kN Fire Rating: Euroclass A1 Material: Galvanised mild steel S250GD+Z275 to EN10346:2015 ETAG015/TR016 / ETAG015 (ETA13/0804) Type: Angle bracket Depth: 40mm Length: 60mm Width: 60mm
