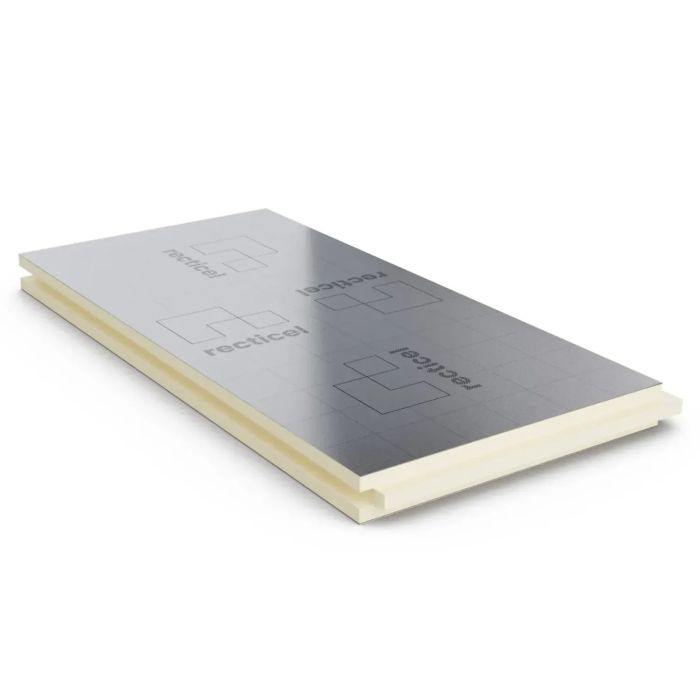

Recticel Eurowall + Cavity 140mm x 1200 x 460 T&G 4 Sides

Recticel Eurowall+ Full Fill Cavity Wall Insulation Board is a high-performance PIR insulation board designed for full fill masonry cavity wall applications. It is used where the wall build-up has been specified around a deeper insulation layer, helping to support strong thermal performance while allowing for a 10mm residual cavity during construction. Each board measures 1200mm x 460mm x 140mm and is supplied in a pack of 8 boards, covering 4.32m² per pack. With a declared thermal conductivity of 0.022W/mK and a thermal resistance value of 6.35m²K/W, Recticel Eurowall+ is suited to cavity wall projects where a high level of thermal resistance, board fit and installation practicality all matter. Recticel Eurowall+ features tongue and groove edges on all four sides, helping the boards fit closely together during installation. This edge profile supports better continuity between boards, helping to reduce gaps and minimise thermal bridging across the wall insulation layer. The board is designed for use in full fill masonry cavity wall construction and should be installed in line with the latest Recticel technical guidance, project specification and relevant building requirements. Its 10mm residual cavity approach leaves space for conventional bricklaying techniques, which can be useful on new-build, extension and self-build cavity wall projects where both performance and buildability need to be considered. Specifications Thickness: 140mm Board Size: 1200mm x 460mm Coverage: 4.32m² per board Thermal Conductivity: 0.022W/mK Application: Roofs, Walls & Floors. Including underfloor heating systems Material: Polyisocyanurate (PIR) Density: 30kg/m³ Fire Rating: Euroclass F Edge Type: Tongue and Groove Facing: Low Emissivity Foil
