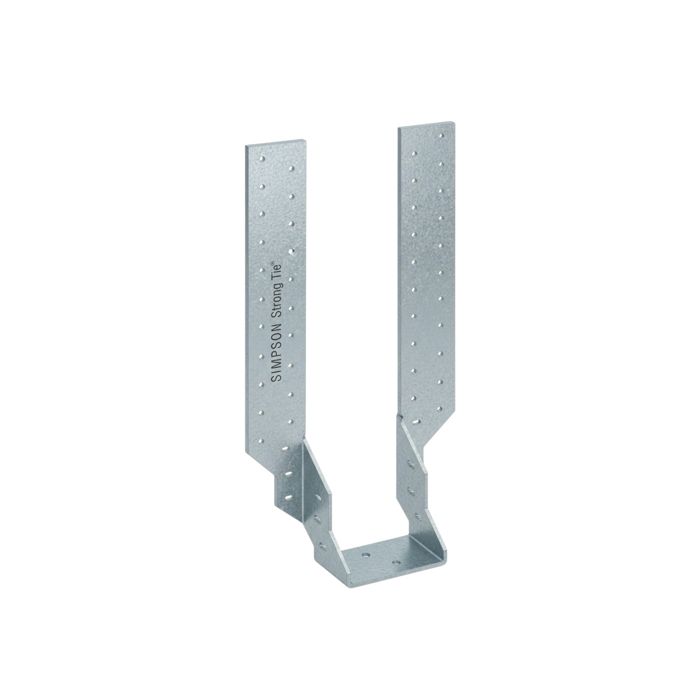

Simpson Strongtie Timber to Timber Hanger Long leg 47mm

The Simpson Strong-Tie JHA450/47 is a versatile timber-to-timber joist hanger designed for 47mm wide joists. Featuring a 477mm overall height with an extended adjustable strap, it provides high-load capacity and ease of alignment on-site for deeper joist applications. Fully CE marked and galvanised for long-term structural integrity. Features A galvanised joist hanger that provides great support with ease of installation. Published performance values are based upon 3.75 x 30mm square twist nails being used throughout. Wider strap provides more surface area on the supporting timber and allows increased nail spacing, enhancing the performance of the critical hanger-to-support part of the connection. Minimum and maximum nailing schedules are stamped into the strap providing correct installation information for site operatives. The model number and size is stamped into the seat of the hanger for easy identification, even after installation. Long Leg Performance: The 477mm strap provides significantly more surface area on supporting timber, allowing for increased nail spacing and suitability for deeper joist depths. Enhanced Load Capacity: The extended strap length allows for a higher number of header fixings (34 holes), providing superior structural support for heavy-duty timber-to-timber connections. Material Integrity: Manufactured from 1.2mm pre-galvanised mild steel to ensure structural durability and high resistance to corrosion. Specifications Width: 47mm Height: 477mm Depth: 50mm Thickness: 1.2mm Header Holes: 38 Joist Holes: 6 Material: Pre-galvanised mild steel
