Simpson Strongtie Heavy Duty Face Fix Hanger 167 x 47 x 2mm

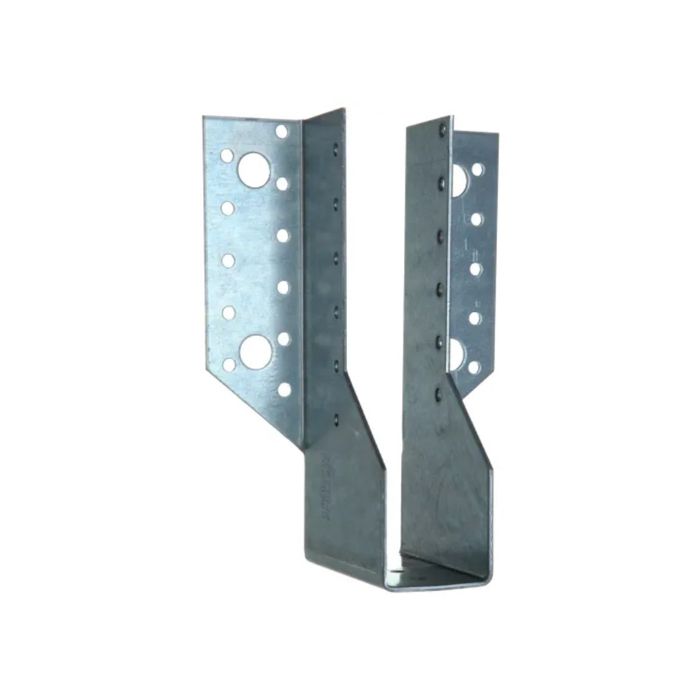

Simpson Strong-Tie Heavy U Joist Hanger 167 x 47 x 2mm (H x W x T) is a heavy duty hanger designed for timber-to-timber applications that require additional strength. The hanger depth should be at least 60% of the carried member depth to prevent rotation unless another means of lateral restraint is added to the joist. The SAE timber to masonry bolted capacity to be determined in accordance with the required standards. Features Corrosion resistant. To aid inspection from the ground a built-in inspection slot is provided at the base of the hanger. Superior performance due to the top flange providing the widest area in contact with masonry support. Holes allow improved mortar keying and embossments on JHM stiffen the top flange. Greatly enhanced resistance to joist rotation due to the higher JHM side flange on deeper hangers being much higher than a traditional style. Specifications Type: Joist Hangers Materials: Steel Commercial Or Domestic Use: Both Application: Interior/External Finish: Galvanised Width: 47mm Height: 167mm Thickness: 2mm
