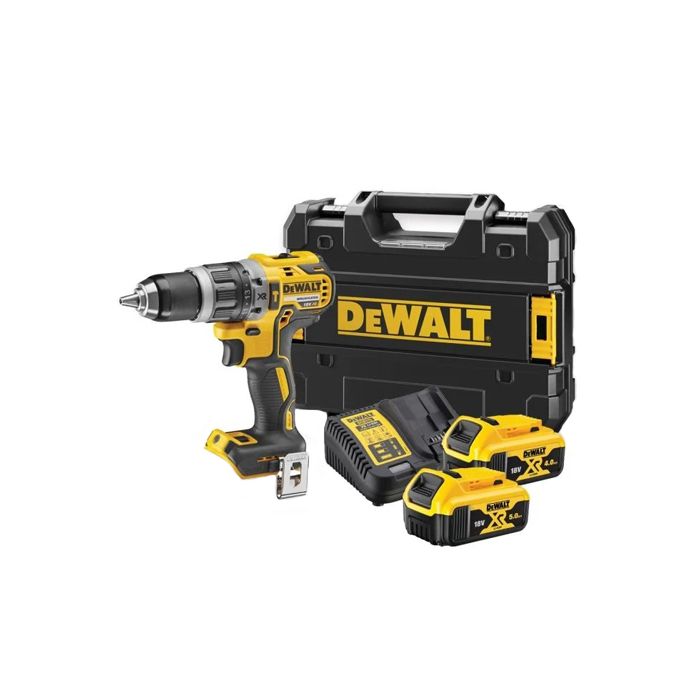

The DeWalt DCD796PM compact combi hammer drill featuring brushless technology is up to 30% more powerful than the DCD795 with 460 Units Watts Out (UWO). Supplied in a TSTAK carry case with inlay for drill, 1x 4.0Ah and 1x 5.0Ah batteries and multi-voltage charger.
Features
Brushless Motor Technology for excellent efficiency.
Ultra compact, lightweight design allows use in confined spaces.
Two speed all metal transmission for increased runtime and longer tool life.
Drill Driver and Hammer feature for multiple applications.
15 position adjustable torque control for consistent screw driving into a variety of materials.
Intelligent trigger design allows for total control of application.
Improved ergonomic design with rubber grip over mould improving users comfort.
Improved air flow to the motor for cooler electronics and increased power.
3 position super bright LED light.
Li-Ion battery packs allows for superior insertion and removal with state of charge indicator.
Part of the intelligent XR Lithium Ion Series designed for efficiency and making applications faster.
Specifications
Voltage: 18v
Power Output: 460W
Soft Application Max Torque (Nm): 27
Hard Application Max Torque (Nm): 70
Torque Settings: 15 + Drill
Brake Type: Electric
No. of Gears: 2
LED Job Light: Yes / Delay / Base-mounted
Battery Capacity Indicator: No
Battery Compatibility: 18v Lithium-Ion (XR)
Rotation: Forward / Reverse
Variable Speed Control Trigger: Yes
No Load Speed (RPM) High: 0-2000
No Load Speed (RPM) Med: N/A
No Load Speed (RPM) Low: 0-550
Chuck Type: 3-Jaw / Single Sleeve Keyless / All Metal
Chuck Capacity: 1.5-13.0mm
Drill Capacity: Concrete: 13mm
Drill Capacity: Metal: 13mm
Drill Capacity: Wood: 40mm
Impact Rate (BPM) High: 0-34000
Impact Rate (BPM) Med: N/A
Impact Rate (BPM) Low: 0-9350
Overall Length: 190mm
Net Weight (Approx. kg) with 1.5/2Ah Batt: 1.6
Net Weight (Approx. kg) with 3/4/5Ah Batt: 1.8
Brushless Motor: Yes
Noise & Vibration
Sound Pressure Level (LpA): 89 dB (A).
Sound Power Level (LWA): 100 dB (A).
Sound Uncertainty (K): 3 dB (A).
Drilling Concrete Vibration Emission (ah): 11.5 m/s².
Drilling Concrete Vibration Uncertainty (K): 1.6 m/s².
Drilling Metal Vibration Emission (ah): <2.5 m/s².
Drilling Metal Vibration Uncertainty (K): 1.5 m/s².
